vs10xx.c File Reference

Functions for interfacing with the mp3 player chip. More...

#include "vs10xx.h"
#include "lcd.h"
#include "filesys.h"
#include "storage.h"
#include "ui.h"
#include "aviplay.c"

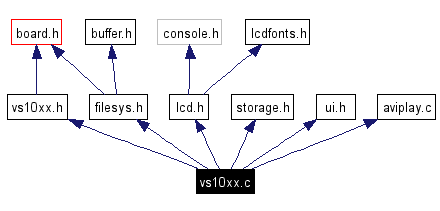

Include dependency graph for vs10xx.c:

Include dependency graph

Go to the source code of this file.

Defines

#define AVIPLAY

Functions

unsigned int Mp3ReadRegister (unsigned char addressbyte)
 Read the 16-bit value of a VS10xx register.

void Mp3SoftReset ()
 Soft Reset of VS10xx (Between songs).

void Mp3Reset ()
 Reset VS10xx.

void VsSineTest ()
 Execute VS1011/VS1002 Sine Test Function.

void SendZerosToVS10xx ()
 Send 2048 zeros.

unsigned char PlayDiskSectors (unsigned int nSectorsToPlay)
 Play disk sectors from disk.

Detailed Description

Functions for interfacing with the mp3 player chip.

Todo:
safe rewind

VS1003 WMA "wma-bytes-left" variable adjustment at ff/rew

Definition in file vs10xx.c.

Define Documentation

#define AVIPLAY


Definition at line 191 of file vs10xx.c.

Function Documentation

unsigned int Mp3ReadRegister (  unsigned char  addressbyte  )


Read the 16-bit value of a VS10xx register.

Definition at line 17 of file vs10xx.c.

References Mp3DeselectControl, Mp3SelectControl, SPI_RESULT_BYTE, SPIPutChar, SPIPutCharWithoutWaiting, SPIWait, and VS_READ_COMMAND.

Referenced by AvailableProcessorTime(), PlayDiskSectors(), Record(), and ScreenSetPlayTime().

00017                                                         {
00018   unsigned int resultvalue = 0;
00019
00020   Mp3SelectControl();
00021   SPIPutCharWithoutWaiting(VS_READ_COMMAND);
00022   SPIPutChar((addressbyte));
00023   SPIPutChar(0xff);
00024   SPIWait();
00025   resultvalue = (SPI_RESULT_BYTE) << 8;
00026   SPIPutCharWithoutWaiting(0xff);
00027   SPIWait();
00028   resultvalue |= (SPI_RESULT_BYTE);
00029   Mp3DeselectControl();
00030   return resultvalue;
00031 }

void Mp3Reset (   )


Reset VS10xx.

Definition at line 69 of file vs10xx.c.

References Delay(), MP3_DREQ, Mp3DeselectControl, Mp3DeselectData, Mp3PutInReset, Mp3ReleaseFromReset, Mp3SetVolume, Mp3SoftReset(), Mp3WriteRegister, SPI_AUDATA, SPI_CLOCKF, SPIPutCharWithoutWaiting, and SPISetFastClock.

Referenced by main(), and Record().

00069                {
00070
00071   Mp3PutInReset();
00072   Delay(1);
00073
00074   /* Send dummy SPI byte to initialize SPI */
00075   SPIPutCharWithoutWaiting(0xFF);
00076
00077   /* Un-reset MP3 chip */
00078   Mp3DeselectControl();
00079   Mp3DeselectData();
00080   Mp3ReleaseFromReset();
00081   Mp3SetVolume(0xff,0xff);
00082
00083   /* Set clock register, doubler etc. */
00084 #ifdef VS1003
00085   Mp3WriteRegister(SPI_CLOCKF, 0xa6, 0x6c);
00086 #else
00087   Mp3WriteRegister(SPI_CLOCKF, 156, 204);
00088 #endif
00089
00090   /* Wait for DREQ */
00091   while (!MP3_DREQ)
00092     ;
00093
00094   /* Slow sample rate for slow analog part startup */
00095   Mp3WriteRegister(SPI_AUDATA, 0, 10); /* 10 Hz */
00096   Delay(100);
00097
00098   /* Switch on the analog parts */
00099   Mp3SetVolume(0xfe,0xfe);
00100   Mp3WriteRegister (SPI_AUDATA, 31, 64); /* 8kHz */
00101   Mp3SetVolume(20,20);
00102   Mp3SoftReset();
00103   SPISetFastClock();
00104
00105
00106   ConsoleWrite ("Init: VS10XX\r");
00107
00108 }

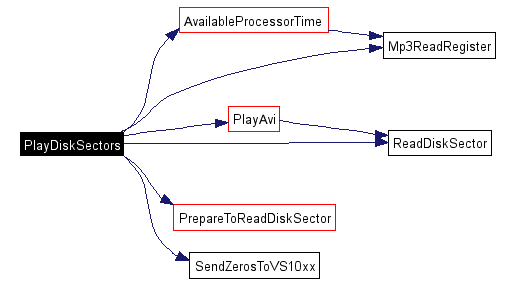

Here is the call graph for this function:

void Mp3SoftReset (   )


Soft Reset of VS10xx (Between songs).

Definition at line 35 of file vs10xx.c.

References Delay(), MP3_DREQ, Mp3DeselectData, Mp3SelectData, Mp3WriteRegister, SPI_CLOCKF, SPI_MODE, SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait.

Referenced by main(), and Mp3Reset().

00035                    {
00036
00037   /* Soft Reset of VS10xx */
00038   Mp3WriteRegister (SPI_MODE, 0x08, 0x04); /* Newmode, Reset, No L1-2 */
00039
00040   Delay(1); /* One millisecond delay */
00041   while (!MP3_DREQ) /* wait for startup */
00042     ;
00043
00044   /* Set clock register, doubler etc. */
00045 #ifdef VS1003
00046   Mp3WriteRegister(SPI_CLOCKF, 0xa6, 0x96);
00047 #else
00048   Mp3WriteRegister(SPI_CLOCKF, 156, 204);
00049 #endif
00050
00051   Delay(1); /* One millisecond delay */
00052
00053
00054   /* Send null bytes to data interface */
00055   Mp3SelectData();
00056   SPIPutCharWithoutWaiting(0);
00057   SPIPutChar(0);
00058   SPIPutChar(0);
00059   SPIPutChar(0);
00060   SPIWait();
00061   Mp3DeselectData();
00062
00063 }

Here is the call graph for this function:

unsigned char PlayDiskSectors (  unsigned int  nSectorsToPlay  )


Play disk sectors from disk.

Starting from current value in global variable sectorAddress, sends a number of disk sectors to vs10xx and returns.

How many sectors to send between ff/rew commands

Definition at line 202 of file vs10xx.c.

References AvailableProcessorTime(), DiskBlock::Raw::buf, dataBufPtr, diskSect, GREEN_LED, Address::l, LED_OFF, LED_ON, MP3_DREQ, Mp3DeselectData, Mp3ReadRegister(), Mp3SelectData, Mp3WriteRegister, PlayAvi(), playingState, PrepareToReadDiskSector(), PS_CUE, PS_CUE_ACTION, PS_CUE_WAIT1003, PS_END_OF_SONG, PS_FALLBACK_1, PS_FALLBACK_N, PS_NEXT_SONG, PS_NORMAL, PS_PREVIOUS_SONG, PS_RECORDING, PS_REW_WAIT1003, PS_REWIND, DiskBlock::raw, ReadDiskSector(), sectorAddress, SendZerosToVS10xx(), SPI_AICTRL2, SPI_HDAT1, SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait.

Referenced by PlayCurrentFile().

00202                                                            {
00203
00205   unsigned char fallbackCount = 0;
00206
00207
00208 #ifdef AVIPLAY
00209   if (!PlayAvi()) return 0; //try to play AVI file soundtrack starting from
00210                             //current sector, if avifile is played, return.
00211 #endif
00212
00213
00214   PrepareToReadDiskSector(sectorAddress.l);
00215   while (nSectorsToPlay--){
00216
00217     AvailableProcessorTime();
00218
00219     ReadDiskSector(sectorAddress.l);
00220
00221     /* If playing state is something else than "play normally",
00222        exit returning the request number. */
00223     if ((playingState==PS_END_OF_SONG)||
00224         (playingState==PS_NEXT_SONG)||
00225         (playingState==PS_RECORDING)||
00226         (playingState==PS_PREVIOUS_SONG)){
00227       return playingState;
00228     }
00229
00230
00231     /* === REWIND / FAST FORWARD FUNCTIONALITY CODE BEGINS === */
00232     /* If you don't implement rewind / fast forward, leave these lines out */
00233
00234     if (playingState==PS_FALLBACK_N){
00235       if ((--fallbackCount)==0){
00236         playingState=PS_NORMAL;
00237       }
00238     }
00239
00240     if (playingState==PS_FALLBACK_1){
00241       /* Now we should have brand new sector in memory ready for sending to
00242          VS1003, so let's send zeroes between old and new data. */
00243       ConsoleWrite("(Zeros)");
00244       SendZerosToVS10xx();
00245       ConsoleWrite("->Fallback to normal");
00246       fallbackCount = 24;
00247       playingState = PS_FALLBACK_N;
00248     }
00249
00250
00251     if (playingState==PS_CUE){ //Request to start fast forward
00252       if (Mp3ReadRegister(SPI_HDAT1)==((int)'W'<< 8)+'m'){
00253         ConsoleWrite("\rWmCUE->Wait");
00254         Mp3WriteRegister(SPI_AICTRL2, 0x12, 0x34);
00255         playingState = PS_CUE_WAIT1003;
00256       }else{
00257         playingState = PS_CUE_ACTION;
00258       }
00259     }
00260
00261     if (playingState==PS_CUE_WAIT1003){ //Wait for permission to break data flow
00262       if (Mp3ReadRegister(SPI_AICTRL2)==0x2345){ //permission granted
00263         ConsoleWrite("->Action");
00264         playingState = PS_CUE_ACTION;
00265       }
00266     }
00267
00268     if (playingState==PS_CUE_ACTION){
00269       if (nSectorsToPlay>128){
00270         sectorAddress.l += 128; //Skip sectors
00271         nSectorsToPlay -= 128;
00272         //adjust vs1003 song left
00273         ConsoleWrite("->Fallback(5)");
00274         playingState = PS_FALLBACK_1; //Sector already in memory still goes.
00275       }
00276     }
00277
00278     if (playingState==PS_REWIND){ //Request to start fast forward
00279       Mp3WriteRegister(SPI_AICTRL2, 0x12, 0x34);
00280       playingState = PS_REW_WAIT1003;
00281     }
00282
00283     if (playingState==PS_REW_WAIT1003){ //Wait for permission to break data flow
00284       if (1){
00285         if (1 || (Mp3ReadRegister(SPI_AICTRL2)==0x2345)){ //permission granted
00286           sectorAddress.l -= 128;
00287           nSectorsToPlay += 128;
00288           playingState = PS_FALLBACK_1; //Sector already in memory still goes.
00289         }
00290       }
00291     }
00292
00293
00294     /* === END OF REWIND / FAST FORWARD FUNCTIONALITY CODE === */
00295
00296
00297
00298     sectorAddress.l++;
00299     if (nSectorsToPlay){
00300       /*Do not seek after the last sector*/
00301       PrepareToReadDiskSector(sectorAddress.l);
00302     }
00303
00304     Mp3SelectData();
00305
00306     dataBufPtr = diskSect.raw.buf;
00307     while (dataBufPtr < diskSect.raw.buf+512){
00308
00309       if (!MP3_DREQ){
00310         GREEN_LED = LED_ON;
00311         while (!MP3_DREQ){
00312           Mp3DeselectData();
00313           AvailableProcessorTime();
00314           Mp3SelectData();
00315         }
00316       }
00317       GREEN_LED = LED_OFF;
00318
00319       /* Send 32 octets of disk block data to VS10xx */
00320       SPIPutCharWithoutWaiting(*dataBufPtr++);
00321       SPIWait();
00322       SPIPutChar(*dataBufPtr++);
00323       SPIPutChar(*dataBufPtr++);
00324       SPIPutChar(*dataBufPtr++);
00325       SPIPutChar(*dataBufPtr++);
00326       SPIPutChar(*dataBufPtr++);
00327       SPIPutChar(*dataBufPtr++);
00328       SPIPutChar(*dataBufPtr++);
00329       SPIPutChar(*dataBufPtr++);
00330       SPIPutChar(*dataBufPtr++);
00331       SPIPutChar(*dataBufPtr++);
00332       SPIPutChar(*dataBufPtr++);
00333       SPIPutChar(*dataBufPtr++);
00334       SPIPutChar(*dataBufPtr++);
00335       SPIPutChar(*dataBufPtr++);
00336       SPIPutChar(*dataBufPtr++);
00337       SPIPutChar(*dataBufPtr++);
00338       SPIPutChar(*dataBufPtr++);
00339       SPIPutChar(*dataBufPtr++);
00340       SPIPutChar(*dataBufPtr++);
00341       SPIPutChar(*dataBufPtr++);
00342       SPIPutChar(*dataBufPtr++);
00343       SPIPutChar(*dataBufPtr++);
00344       SPIPutChar(*dataBufPtr++);
00345       SPIPutChar(*dataBufPtr++);
00346       SPIPutChar(*dataBufPtr++);
00347       SPIPutChar(*dataBufPtr++);
00348       SPIPutChar(*dataBufPtr++);
00349       SPIPutChar(*dataBufPtr++);
00350       SPIPutChar(*dataBufPtr++);
00351       SPIPutChar(*dataBufPtr++);
00352       SPIPutChar(*dataBufPtr++);
00353       SPIWait();
00354     }
00355
00356
00357     SPIWait();
00358     Mp3DeselectData();
00359   }
00360
00361
00362   return 0; //OK Exit
00363 }

Here is the call graph for this function:

void SendZerosToVS10xx (   )


Send 2048 zeros.

Todo:
Timeouts for all DREQ busy loop waits!

Definition at line 178 of file vs10xx.c.

References Temp::i, MP3_DREQ, Mp3DeselectData, Mp3SelectData, SPIPutChar, SPIPutCharWithoutWaiting, SPIWait, and temp.

Referenced by PlayCurrentFile(), and PlayDiskSectors().

00178                         {
00179   Mp3SelectData();
00180   SPIPutCharWithoutWaiting(0);
00181   for (temp.i=0; temp.i<1048; temp.i++){ /* TESTING 1048 TESTING */
00182     while (!MP3_DREQ)
00183       ;
00184     SPIPutChar(0);
00185   }
00186   SPIWait();
00187   Mp3DeselectData();
00188 }

void VsSineTest (   )


Execute VS1011/VS1002 Sine Test Function.

Definition at line 112 of file vs10xx.c.

References Delay(), GREEN_LED, LED_OFF, LED_ON, MP3_DREQ, Mp3DeselectControl, Mp3DeselectData, Mp3PutInReset, Mp3ReleaseFromReset, Mp3SelectControl, Mp3SelectData, RED_LED, SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait.

00112                  {
00113
00114   /* Reset MP3 chip */
00115   Mp3PutInReset();       /* Pull xRESET low -> hardware reset */
00116   Delay(100);            /* 100 ms delay */
00117
00118   /* Send dummy SPI byte to initialize SPI of Atmel microcontroller */
00119   SPIPutCharWithoutWaiting(0xFF);
00120
00121   /* Un-reset MP3 chip */
00122   Mp3DeselectControl();  /* Pull xCS high    */
00123   Mp3DeselectData();     /* Pull xDCS high   */
00124   Mp3ReleaseFromReset(); /* Pull xRESET high */
00125   Delay(100);            /* 100 ms delay     */
00126
00127   GREEN_LED = LED_ON;
00128   RED_LED = LED_ON;
00129
00130   /* VS10xx Application Notes, chapter 4.8 ---------------------------------*/
00131   /* As an example, let's write value 0x0820 to register 00 byte by byte    */
00132   Mp3SelectControl();    /* Now SPI writes go to SCI port                   */
00133   SPIPutChar(0x02);      /* Send SPI Byte, then wait for byte to be sent.   */
00134   SPIPutChar(0x00);      /* 0x02 was WRITE command, 0x00 is register number */
00135   SPIPutChar(0x08);      /* This byte goes to MSB                           */
00136   SPIPutChar(0x20);      /* ..and this is LSB. (0x20=Allow Test Mode)       */
00137   SPIWait();             /* Wait until Atmel MCU signals SPI write complete */
00138   Mp3DeselectControl();  /* Now SPI writes don't go to SCI port             */
00139
00140   while (!MP3_DREQ)      /* Wait for DREQ = 1                               */
00141     ;                    /* Do nothing while waiting for DREQ = 1           */
00142
00143   /* Send a Sine Test Header to Data port                                   */
00144   Mp3SelectData();       /* Now SPI writes go to SDI port                   */
00145
00146   SPIPutChar(0x53);      /* - This is a special VLSI Solution test header - */
00147   SPIPutChar(0xef);      /* - that starts a sine sound. It's good for     - */
00148   SPIPutChar(0x6e);      /* - testing your code, the chip and also for    - */
00149   SPIPutChar(0x44);      /* - seeing if your MP3 decoder was manufactured - */
00150   SPIPutChar(0x00);      /* - by VLSI Solution oy. ------------------------ */
00151   SPIPutChar(0x00);
00152   SPIPutChar(0x00);
00153   SPIPutChar(0x00);
00154   SPIWait();
00155   Mp3DeselectData();
00156
00157   RED_LED = LED_OFF;
00158   Delay (500);           /* 500 ms delay */
00159   GREEN_LED = LED_OFF;
00160
00161   /* Stop the sine test sound */
00162   Mp3SelectData();
00163   SPIPutChar(0x45);
00164   SPIPutChar(0x78);
00165   SPIPutChar(0x69);
00166   SPIPutChar(0x74);
00167   SPIPutChar(0x00);
00168   SPIPutChar(0x00);
00169   SPIPutChar(0x00);
00170   SPIPutChar(0x00);
00171   SPIWait();
00172   Mp3DeselectData();
00173
00174   Delay(500);            /* 500 ms delay */
00175 }

Here is the call graph for this function:

All software copyright 2000-2004 VLSI Solution OY. Redistribution of these software modules are limited to promotional use only and only with the VS1011 / VS1002 / VS1003 MP3-Evakit evaluation boards. Free or commercial use of these software modules in MP3 players is ok if the product includes MP3 decoder chip(s) from VLSI. You can request the complete (compilable) package from mp3@vlsi.fi
