lcd.c File Reference

LCD function implementations. More...

#include "board.h"
#include "lcd.h"
#include "lcdfonts.c"

Include dependency graph for lcd.c:

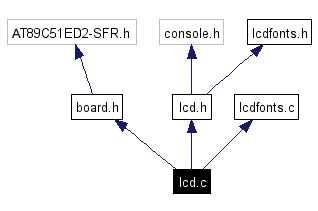

Include dependency graph

Go to the source code of this file.

Functions

void LcdPutChar (char c)
 Low level: Send one data character to LCD.

void LcdPutCommand (char cmd)
 Low level: Send one command octet to LCD.

void LcdSelectFont (ROM_CHAR_PTR font)
void LcdReset ()
 Low level: Reset LCD.

void LcdPutString (char *str)
 Low level: Send a zero-terminated string of bytes to lcd from buffer in any memory.

void LcdPutConstantString (char code *str)
 Low level: Send a zero-terminated string of bytes to lcd from buffer in ROM.

void LcdFadeIn ()
void LcdFadeOut ()
void LcdSplashScreen ()
 Splash screen.

void LcdPutHex16 (unsigned int value)
 Print a 16-bit hex value on LCD.

void LcdPutHex8 (unsigned char value)
 Print an 8-bit hex value on LCD.

unsigned char LcdPrintGenericResult (unsigned char errorlevel)
 Print OK or Error (hex8) on LCD.

void LcdPutUInt (unsigned long value)
 Print a 16-bit unsigned integer value on LCD.


Variables

code const unsigned char lcd_hexchars [17] = "0123456789abcdef"
 hexadecimal character set

Detailed Description

LCD function implementations.

Required modules: board

Definition in file lcd.c.

Function Documentation

void LcdFadeIn (   )


Definition at line 111 of file lcd.c.

References InitiateDelay, and LcdPutCommand().

Referenced by LcdSplashScreen().

00111                 {
00112   unsigned char c,d;
00113   for (c=0; c<254; c++){
00114     for (d=252; d; d-=2){
00115       if (d>c){
00116         LcdPutCommand (8);
00117         InitiateDelay(40);
00118       }else{
00119         LcdPutCommand (12);
00120         InitiateDelay(40);
00121       }
00122     }
00123   }
00124   LcdPutCommand(12);
00125   InitiateDelay(40);
00126 }

Here is the call graph for this function:

void LcdFadeOut (   )


Definition at line 128 of file lcd.c.

References InitiateDelay, and LcdPutCommand().

Referenced by LcdSplashScreen().

00128                  {
00129   unsigned char c,d;
00130   for (c=0; c<254; c++){
00131     for (d=252; d; d-=2){
00132       if (d<c){
00133         LcdPutCommand (8);
00134         InitiateDelay(40);
00135       }else{
00136         LcdPutCommand (12);
00137         InitiateDelay(40);
00138       }
00139     }
00140   }
00141   LcdPutCommand(8);
00142   InitiateDelay(40);
00143 }

Here is the call graph for this function:

unsigned char LcdPrintGenericResult (  unsigned char  errorlevel  )


Print OK or Error (hex8) on LCD.

Definition at line 185 of file lcd.c.

References Delay(), lcd_hexchars, LcdPutChar(), and LcdPutConstantString().

Referenced by main().

00185                                                               {
00186   if (!errorlevel){
00187     LcdPutConstantString ("OK      ");
00188   }else{
00189     LcdPutConstantString ("Error ");
00190     LcdPutChar(lcd_hexchars[(errorlevel>>4)&0xf]);
00191     LcdPutChar(lcd_hexchars[(errorlevel)&0xf]);
00192     ConsoleWrite ("\rSystem error ");
00193     ConsolePutHex8 (errorlevel);
00194     ConsoleWrite (": \"");
00195
00196     switch (errorlevel){
00197     case 0x01: ConsoleWrite ("No storage"); break;
00198     case 0x02: ConsoleWrite ("Storage powerup"); break;
00199     case 0x03: ConsoleWrite ("Storage init"); break;
00200     case 0x04: ConsoleWrite ("No storage ID"); break;
00201     case 0x05: ConsoleWrite ("Datablock header"); break;
00202     case 0x06: ConsoleWrite ("Storage Data reply failed"); break;
00203     case 0x07: ConsoleWrite ("Generic Storage Command"); break;
00204     case 0x08: ConsoleWrite ("Sector 0 not in recognized format"); break;
00205     case 0x09: ConsoleWrite ("No active partition"); break;
00206     case 0x0a: ConsoleWrite ("Filesystem load"); break;
00207     case 0x0b: ConsoleWrite ("No root directory"); break;
00208     case 0x0c: ConsoleWrite ("File not found"); break;
00209
00210     };
00211     ConsoleWrite("\" failure.\r");
00212
00213
00214     Delay(500);
00215   }
00216   return errorlevel;
00217 }

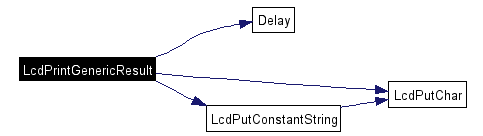

Here is the call graph for this function:

void LcdPutChar (  char  c  )


Low level: Send one data character to LCD.

Parameters:
c Octet to be sent to LCD

Definition at line 17 of file lcd.c.

References InitiateDelay, LCD_DATA_MODE, LCD_DATABUS, LCD_ENABLE, LCD_RS, and WaitOutDelay.

Referenced by LcdPrintGenericResult(), LcdPutConstantString(), LcdPutHex16(), LcdPutHex8(), LcdPutString(), LcdPutUInt(), LcdSplashScreen(), main(), and UpdateDisplay().

00017                         {
00018   WaitOutDelay();
00019   LCD_RS = LCD_DATA_MODE;
00020   LCD_ENABLE = 1; /* Rising edge */
00021   LCD_DATABUS = c;
00022   LCD_ENABLE = 1; /* Keep high...*/
00023   LCD_ENABLE = 0; /* Falling edge */
00024   InitiateDelay(44);
00025 }

void LcdPutCommand (  char  cmd  )


Low level: Send one command octet to LCD.

Parameters:
cmd Command octet to be sent to LCD

Definition at line 33 of file lcd.c.

References LCD_COMMAND_MODE, LCD_DATABUS, LCD_ENABLE, LCD_RS, and WaitOutDelay.

Referenced by LcdFadeIn(), LcdFadeOut(), and LcdReset().

00033                             {
00034   WaitOutDelay();
00035   LCD_RS = LCD_COMMAND_MODE;
00036   LCD_ENABLE = 1; /* Rising edge */
00037   LCD_DATABUS = cmd;
00038   LCD_ENABLE = 0; /* Falling edge */
00039 }

void LcdPutConstantString (  char code *  str  )


Low level: Send a zero-terminated string of bytes to lcd from buffer in ROM.

Example: LcdPutConstantString ("Hello!");

Parameters:
*str pointer to a zero-terminated string in code ROM.

Definition at line 102 of file lcd.c.

References LcdPutChar().

Referenced by LcdPrintGenericResult(), LcdSelectFont(), LcdSplashScreen(), main(), PlayCurrentFile(), and UpdateDisplay().

00102                                          {
00103   while (*str)
00104     {
00105       LcdPutChar (*str++);
00106     }
00107 }

Here is the call graph for this function:

void LcdPutHex16 (  unsigned int  value  )


Print a 16-bit hex value on LCD.

Definition at line 168 of file lcd.c.

References lcd_hexchars, and LcdPutChar().

00168                                      {
00169   LcdPutChar(lcd_hexchars[value>>12]);
00170   LcdPutChar(lcd_hexchars[(value>>8)&0xf]);
00171   LcdPutChar(lcd_hexchars[(value>>4)&0xf]);
00172   LcdPutChar(lcd_hexchars[(value)&0xf]);
00173 }

Here is the call graph for this function:

void LcdPutHex8 (  unsigned char  value  )


Print an 8-bit hex value on LCD.

Definition at line 177 of file lcd.c.

References lcd_hexchars, and LcdPutChar().

00177                                      {
00178
00179   LcdPutChar(lcd_hexchars[(value>>4)&0xf]);
00180   LcdPutChar(lcd_hexchars[(value)&0xf]);
00181 }

Here is the call graph for this function:

void LcdPutString (  char *  str  )


Low level: Send a zero-terminated string of bytes to lcd from buffer in any memory.

Example: LcdPutString (s);

Parameters:
*str pointer to a zero-terminated string in idata segment
Warning:
Do not call for const type strings in the ROM!

Definition at line 89 of file lcd.c.

References LcdPutChar().

Referenced by InitDisplay().

00089                               {
00090   while (*str) {
00091     LcdPutChar (*str++);
00092   }
00093 }

Here is the call graph for this function:

void LcdPutUInt (  unsigned long  value  )


Print a 16-bit unsigned integer value on LCD.

Definition at line 221 of file lcd.c.

References LcdPutChar().

Referenced by main(), and UpdateDisplay().

00221                                     {
00222   xdata unsigned char valueString[10];
00223   char c;
00224   for (c=0; c<10; c++){
00225     valueString[c]=value % 10;
00226     value = value / 10;
00227   }
00228   c=9;
00229   while ((valueString[c]==0) && (c!=0))
00230     c--;
00231   for (;c!=0;c--)
00232     LcdPutChar('0'+valueString[c]);
00233   LcdPutChar('0'+valueString[0]);
00234
00235 }

Here is the call graph for this function:

void LcdReset (   )


Low level: Reset LCD.

Definition at line 56 of file lcd.c.

References InitiateDelay, LCD_ENABLE, lcdFont_barchars, LcdPutCommand(), LcdSelectFont(), and WaitOutDelay.

Referenced by AvailableProcessorTime(), InitDisplay(), LcdSplashScreen(), and main().

00056                {
00057
00058
00059   LCD_ENABLE = 0;
00060   InitiateDelay(0); /* Initialize the delay system */
00061
00062   LcdPutCommand(56); /* 8 data bits, 2 lines */
00063   InitiateDelay(39);
00064
00065   WaitOutDelay();
00066   LcdPutCommand(56); /* Command 2 times "just in case" */
00067   InitiateDelay(39);
00068
00069   WaitOutDelay();
00070   LcdPutCommand(12); /* Panel on, no cursor */
00071   InitiateDelay(39);
00072
00073   WaitOutDelay();
00074   LcdPutCommand(1);  /* Clear screen */
00075   InitiateDelay(1530); /* Start a 1.53 ms delay */
00076
00077   LcdSelectFont(lcdFont_barchars);
00078
00079 }

Here is the call graph for this function:

void LcdSelectFont (  ROM_CHAR_PTR  font  )


Definition at line 43 of file lcd.c.

References LcdLocateCG, LcdLocateHome, LcdPutConstantString(), and ROM_CHAR_PTR.

Referenced by AvailableProcessorTime(), LcdReset(), and LcdSplashScreen().

00043                                      {
00044   static ROM_CHAR_PTR loadedFont = 0;
00045   if (loadedFont != font){
00046     loadedFont=font;
00047
00048     LcdLocateCG();
00049     LcdPutConstantString(font);
00050     LcdLocateHome();
00051
00052   }
00053 }

Here is the call graph for this function:

void LcdSplashScreen (   )


Splash screen.

Definition at line 147 of file lcd.c.

References LcdFadeIn(), LcdFadeOut(), lcdFont_vlsichars, LcdLocateHome, LcdLocateLine2, LcdPutChar(), LcdPutConstantString(), LcdReset(), and LcdSelectFont().

00147                       {
00148
00149   LcdReset();
00150
00151   LcdSelectFont(lcdFont_vlsichars);
00152
00153   LcdLocateHome();
00154
00155   LcdPutChar(0);
00156   LcdPutConstantString("\1\2\3 Sol");
00157   LcdLocateLine2();
00158   LcdPutConstantString("ution Oy");
00159
00160
00161   LcdFadeIn();
00162   LcdFadeOut();
00163
00164 }

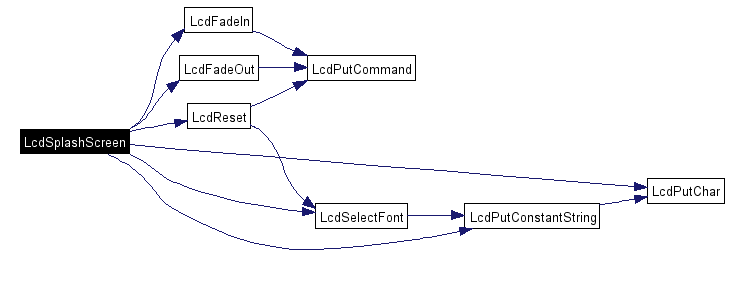

Here is the call graph for this function:

Variable Documentation

code const unsigned char lcd_hexchars[17] = "0123456789abcdef"


hexadecimal character set

Definition at line 11 of file lcd.c.

Referenced by LcdPrintGenericResult(), LcdPutHex16(), and LcdPutHex8().
