DiskBlock::Fat Struct Reference

Boot Sector / Bios Parameter Block structure. More...

#include <buffer.h>

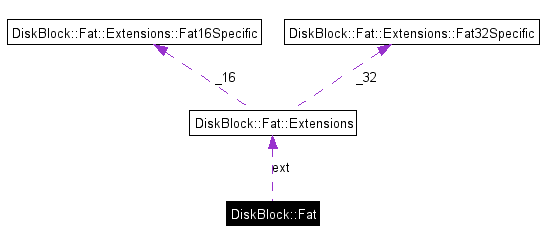

Collaboration diagram for DiskBlock::Fat:

Collaboration graph
[legend]
List of all members.

Public Attributes

byte BS_jmpBoot [3]
 x86 Boot Jump Code

byte BS_OEMName [8]
 Formatter's name, usually "MSWIN4.1".

word BPB_BytsPerSec
 Bytes per sector (512).

byte BPB_SecPerClus
 Sectors per Cluster (1,2,4,8,..,128).

word BPB_RsvdSecCnt
 Reserved sectors (1 (32 for FAT32)).

byte BPB_NumFATs
 Number of FATs (2).

word BPB_RootEntCnt
 FAT12/16 n of root dir entries.

word BPB_TotSec16
 Old sector count (0 for FAT32).

byte BPB_Media
 Media Type (eg 0xF8).

word BPB_FATSz16
 Size of one FAT16 in sectors.

word BPB_SecPerTrk
 Old CHS Sectors Per Track.

word BPB_NumHeads
 Old CSH Number of Heads.

u_32 BPB_HiddSec
 n of sectors before this volume

u_32 BPB_TotSec32
 New sector count (0 for FAT12/16).

DiskBlock::Fat::Extensions ext
 FAT type specific extensions.

Detailed Description

Boot Sector / Bios Parameter Block structure.

Definition at line 56 of file buffer.h.

Member Data Documentation

word DiskBlock::Fat::BPB_BytsPerSec


Bytes per sector (512).

Definition at line 60 of file buffer.h.

Referenced by FatInitGlobals().

word DiskBlock::Fat::BPB_FATSz16


Size of one FAT16 in sectors.

Definition at line 67 of file buffer.h.

Referenced by FatInitGlobals().

u_32 DiskBlock::Fat::BPB_HiddSec


n of sectors before this volume

Definition at line 70 of file buffer.h.

Referenced by FatInitGlobals().

byte DiskBlock::Fat::BPB_Media


Media Type (eg 0xF8).

Definition at line 66 of file buffer.h.

byte DiskBlock::Fat::BPB_NumFATs


Number of FATs (2).

Definition at line 63 of file buffer.h.

Referenced by FatInitGlobals().

word DiskBlock::Fat::BPB_NumHeads


Old CSH Number of Heads.

Definition at line 69 of file buffer.h.

word DiskBlock::Fat::BPB_RootEntCnt


FAT12/16 n of root dir entries.

Definition at line 64 of file buffer.h.

Referenced by FatInitGlobals().

word DiskBlock::Fat::BPB_RsvdSecCnt


Reserved sectors (1 (32 for FAT32)).

Definition at line 62 of file buffer.h.

Referenced by FatInitGlobals().

byte DiskBlock::Fat::BPB_SecPerClus


Sectors per Cluster (1,2,4,8,..,128).

Definition at line 61 of file buffer.h.

Referenced by FatInitGlobals().

word DiskBlock::Fat::BPB_SecPerTrk


Old CHS Sectors Per Track.

Definition at line 68 of file buffer.h.

word DiskBlock::Fat::BPB_TotSec16


Old sector count (0 for FAT32).

Definition at line 65 of file buffer.h.

Referenced by FatInitGlobals().

u_32 DiskBlock::Fat::BPB_TotSec32


New sector count (0 for FAT12/16).

Definition at line 71 of file buffer.h.

Referenced by FatInitGlobals().

byte DiskBlock::Fat::BS_jmpBoot[3]


x86 Boot Jump Code

Definition at line 57 of file buffer.h.

byte DiskBlock::Fat::BS_OEMName[8]


Formatter's name, usually "MSWIN4.1".

Definition at line 58 of file buffer.h.

Referenced by FatInitGlobals().

union DiskBlock::Fat::Extensions DiskBlock::Fat::ext


FAT type specific extensions.

Referenced by FatInitGlobals().

The documentation for this struct was generated from the following file:
