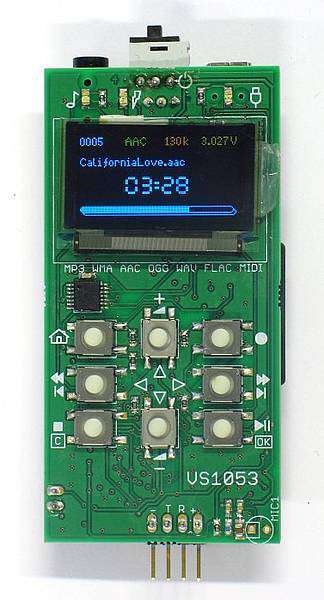

VS1053b USB Hi-Fi Player

VS1053 USB Music Player

Features

  • Multi-format "MP3" media player that uses a single VS1053b
  • Very versatile: plays .MP3, .OGG, .AAC, .M4A, .WMA, .WAV, .IMA, .MID and potentially also .FLAC
  • Excellent sound quality: over 90 dB dynamic range for playback
  • Plays music from SD/SDHC/MMC cards (over 2 GB cards also supported)
  • Headphone / Line Out for playback
  • Built-in mono microphone for voice recording (firmware support not yet available)
  • OLED Display (can be replaced with compatible LCD or used without display)
  • High-Speed USB (480 Mbit/s)
  • Rechargeable Li-Ion battery charged through USB
  • Eight push-buttons
  • Low component count
  • Low BOM
  • New features can be added by the customer because full source code for the VS1053 player application is available for free!

Description

The VS1053 USB Music Player is a cost-efficient low component count MP3 + WMA + AAC + HEAAC + Ogg Vorbis + Flac + MIDI + WAV music player. It uses a single VS1053 DSP chip for audio decoding and a user interface. Music files are stored either on an SD card or on-board FLASH memory. A high speed USB interface (480 Mbit/s) is provided for file transfers. SDHC cards larger than 2 GB are supported. The USB interface is provided by a generic USB SD card reader IC (many vendors available).

Functionality of the VS1053 USB Hi-Fi player can be customized by reprogramming the boot EEPROM. Application source code is available for customization purposes for free. Software supports OLED, STN LCD and TFT LCD displays.

Version updates

Schematic version 0.5

  • Power on/off button
  • Auto power off possible

Schematic version 0.6

  • On/Off LED
  • GPIO1 pull-down

Software version 0.1

  • Smallest code side
  • Good for developing own software for similar applications

Software version 1.0 (2010-02-12)

  • Board is shipped with this software
  • Loudness control
  • Volume display
  • Auto power-off
  • USB activity indicator
  • Stable release
