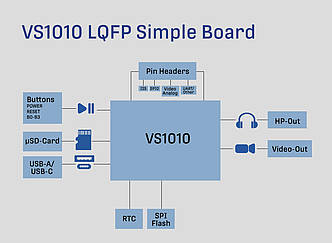

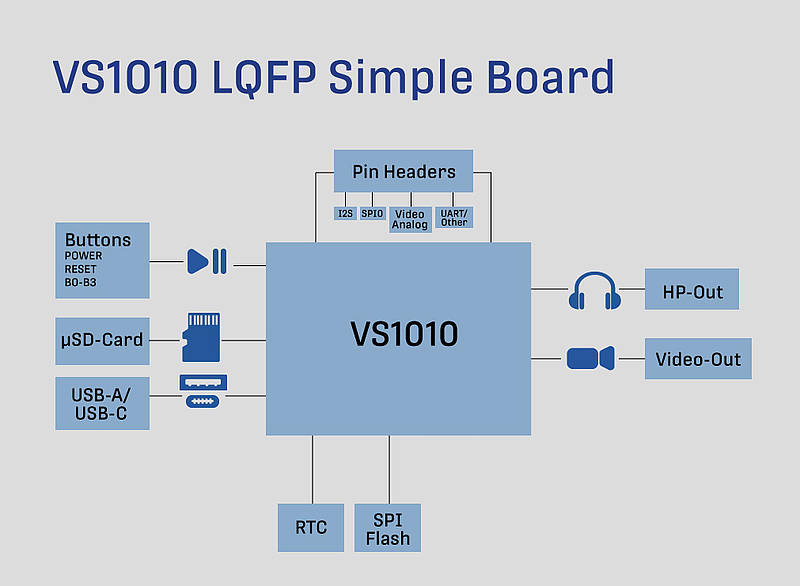

VS1010 LQFP Simple Board

  • VS1010 LQFP Simple Board

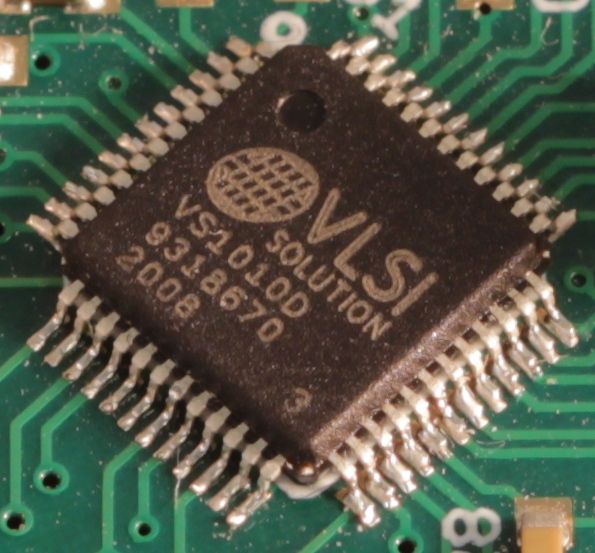

  • VS1010D device in LQFP-48 package
  • MicroSD slot
  • USB A connector for USB flash memory sticks
  • USB C connector for PC USB connection
  • 2 megabyte SPI flash for custom firmware
  • Headphone Out
  • 1 configurable RCA socket (debug monochrome video out)
  • Extension connectors (e.g. 2xUART, SPI, S/PDIF in/out)
  • 5 customizable push buttons
  • Open source VSOS kernel and device drivers
  • Supported by VSIDE development tools

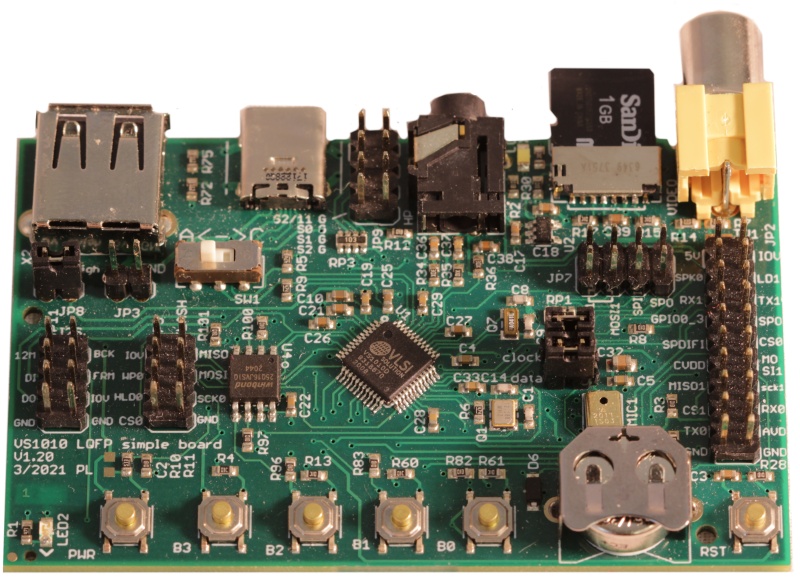

The VS1010 LQFP Simple Board is an application development board for VS1010. It is a stripped-down version of the VS1010 Developer Board for applications that don't necessarily need all the features of the DevBoard. It is also suitable for testing applications where the production flow doesn't allow for the VS1010's more modern QFN-68 package. The board features all necessary hardware for writing and testing software on VS1010.

The board includes most of the features and connectors of the VS1010 DevBoard, amongst them headphone output, MicroSD, 2xUSB, and 5 push buttons.

The board is powered from the USB bus. Serial port is typically used as a debugger interface and for loading code to VS1010.
