VS1005 Breakout Board

VS1005 Breakout Board


  • Supports VS1205, VS1005 or VS8005 devices
  • Open source VSOS kernel and device drivers
  • Supported by VSIDE development tools

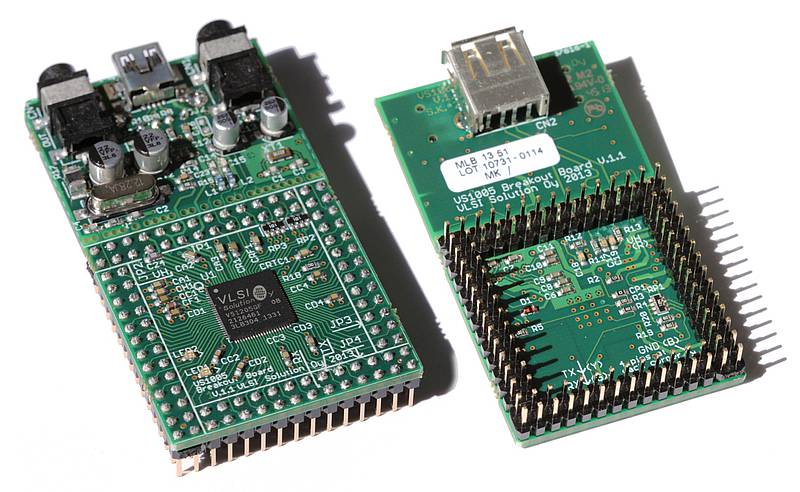

VS1005 Breakout Board is a PCB board that converts the LFGA-88 package to standard 0.1" double pin headers. It is intended for prototyping products that use VS1005 family ICs. Without need to solder the high density LFGA-88 package and with all needed auxiliary components to start the VS1005, the VS1005 Breakout Board simplifies and speeds up product development.

It also has basic components PCB that can be broken away if not needed. This PCB contains crystals, audio and USB connectors and RF input components for FM radio.
