vs10xx.h File Reference

Headers for interfacing with the mp3 player chip. More...

#include "board.h"

Include dependency graph for vs10xx.h:

Include dependency graph

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Defines

#define VS_WRITE_COMMAND   0x02
 VS10xx SCI Write Command byte is 0x02.

#define VS_READ_COMMAND   0x03
 VS10xx SCI Read Command byte is 0x03.

#define SPI_MODE   0x0 /**< VS10xx register */
 VS10xx register.

#define SPI_STATUS   0x1 /**< VS10xx register */
 VS10xx register.

#define SPI_BASS   0x2 /**< VS10xx register */
 VS10xx register.

#define SPI_CLOCKF   0x3 /**< VS10xx register */
 VS10xx register.

#define SPI_DECODE_TIME   0x4 /**< VS10xx register */
 VS10xx register.

#define SPI_AUDATA   0x5 /**< VS10xx register */
 VS10xx register.

#define SPI_WRAM   0x6 /**< VS10xx register */
 VS10xx register.

#define SPI_WRAMADDR   0x7 /**< VS10xx register */
 VS10xx register.

#define SPI_HDAT0   0x8 /**< VS10xx register */
 VS10xx register.

#define SPI_HDAT1   0x9 /**< VS10xx register */
 VS10xx register.

#define SPI_AIADDR   0xa /**< VS10xx register */
 VS10xx register.

#define SPI_VOL   0xb /**< VS10xx register */
 VS10xx register.

#define SPI_AICTRL0   0xc /**< VS10xx register */
 VS10xx register.

#define SPI_AICTRL1   0xd /**< VS10xx register */
 VS10xx register.

#define SPI_AICTRL2   0xe /**< VS10xx register */
 VS10xx register.

#define SPI_AICTRL3   0xf /**< VS10xx register */
 VS10xx register.

#define SM_DIFF   0x01 /**< VS10xx register */
 VS10xx register.

#define SM_JUMP   0x02 /**< VS10xx register */
 VS10xx register.

#define SM_RESET   0x04 /**< VS10xx register */
 VS10xx register.

#define SM_OUTOFWAV   0x08 /**< VS10xx register */
 VS10xx register.

#define SM_PDOWN   0x10 /**< VS10xx register */
 VS10xx register.

#define SM_TESTS   0x20 /**< VS10xx register */
 VS10xx register.

#define SM_STREAM   0x40 /**< VS10xx register */
 VS10xx register.

#define SM_PLUSV   0x80 /**< VS10xx register */
 VS10xx register.

#define SM_DACT   0x100 /**< VS10xx register */
 VS10xx register.

#define SM_SDIORD   0x200 /**< VS10xx register */
 VS10xx register.

#define SM_SDISHARE   0x400 /**< VS10xx register */
 VS10xx register.

#define SM_SDINEW   0x800 /**< VS10xx register */
 VS10xx register.

#define SM_ADPCM   0x1000 /**< VS10xx register */
 VS10xx register.

#define SM_ADPCM_HP   0x2000 /**< VS10xx register */
 VS10xx register.

#define Mp3WriteRegister(addressbyte, highbyte, lowbyte)
 Write VS10xx register.

#define Mp3SetVolume(leftchannel, rightchannel)
 Set VS10xx Volume Register.


Functions

void VsSineTest ()
 Execute VS1011/VS1002 Sine Test Function.

void Mp3Reset ()
 Reset VS10xx.

void Mp3SoftReset ()
 Soft Reset of VS10xx (Between songs).

unsigned int Mp3ReadRegister (unsigned char addressbyte)
 Read the 16-bit value of a VS10xx register.

void SendZerosToVS10xx ()
 Send 2048 zeros.

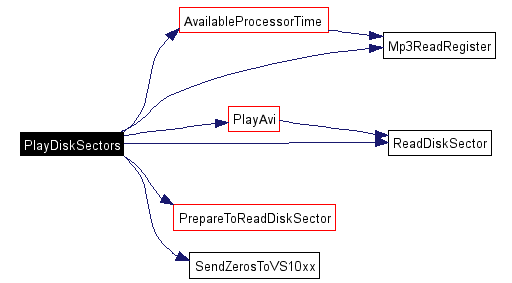

unsigned char PlayDiskSectors (unsigned int nSectorsToPlay)
 Play disk sectors from disk.

void AvailableProcessorTime ()
 This is called when there is free processor time, implement externally.


Variables

xdata unsigned char playingState
 Playing State Global, 0=normal playing, 1=abort playing.

Detailed Description

Headers for interfacing with the mp3 player chip.

Interfacing the New Way, not handling BSYNC -> not compatible with VS1001.

Definition in file vs10xx.h.

Define Documentation

#define Mp3SetVolume (  leftchannel,
rightchannel   )


Value:

{\
 Mp3WriteRegister(11,(leftchannel),(rightchannel));}
Set VS10xx Volume Register.

Definition at line 78 of file vs10xx.h.

Referenced by AvailableProcessorTime(), and Mp3Reset().

#define Mp3WriteRegister (  addressbyte,
highbyte,
lowbyte   )


Value:

{ \
 Mp3SelectControl(); \
 SPIPutCharWithoutWaiting(VS_WRITE_COMMAND); \
 SPIPutChar((addressbyte)); \
 SPIPutChar((highbyte)); \
 SPIPutChar((lowbyte)); \
 SPIWait(); \
 Mp3DeselectControl();}
Write VS10xx register.

Definition at line 68 of file vs10xx.h.

Referenced by AvailableProcessorTime(), LoadPatch(), Mp3Reset(), Mp3SoftReset(), PlayCurrentFile(), PlayDiskSectors(), and Record().

#define SM_ADPCM   0x1000 /**< VS10xx register */


VS10xx register.

Definition at line 48 of file vs10xx.h.

#define SM_ADPCM_HP   0x2000 /**< VS10xx register */


VS10xx register.

Definition at line 49 of file vs10xx.h.

#define SM_DACT   0x100 /**< VS10xx register */


VS10xx register.

Definition at line 44 of file vs10xx.h.

#define SM_DIFF   0x01 /**< VS10xx register */


VS10xx register.

Definition at line 36 of file vs10xx.h.

#define SM_JUMP   0x02 /**< VS10xx register */


VS10xx register.

Definition at line 37 of file vs10xx.h.

#define SM_OUTOFWAV   0x08 /**< VS10xx register */


VS10xx register.

Definition at line 39 of file vs10xx.h.

Referenced by PlayCurrentFile().

#define SM_PDOWN   0x10 /**< VS10xx register */


VS10xx register.

Definition at line 40 of file vs10xx.h.

#define SM_PLUSV   0x80 /**< VS10xx register */


VS10xx register.

Definition at line 43 of file vs10xx.h.

#define SM_RESET   0x04 /**< VS10xx register */


VS10xx register.

Definition at line 38 of file vs10xx.h.

#define SM_SDINEW   0x800 /**< VS10xx register */


VS10xx register.

Definition at line 47 of file vs10xx.h.

#define SM_SDIORD   0x200 /**< VS10xx register */


VS10xx register.

Definition at line 45 of file vs10xx.h.

#define SM_SDISHARE   0x400 /**< VS10xx register */


VS10xx register.

Definition at line 46 of file vs10xx.h.

#define SM_STREAM   0x40 /**< VS10xx register */


VS10xx register.

Definition at line 42 of file vs10xx.h.

#define SM_TESTS   0x20 /**< VS10xx register */


VS10xx register.

Definition at line 41 of file vs10xx.h.

#define SPI_AIADDR   0xa /**< VS10xx register */


VS10xx register.

Definition at line 29 of file vs10xx.h.

#define SPI_AICTRL0   0xc /**< VS10xx register */


VS10xx register.

Definition at line 31 of file vs10xx.h.

Referenced by Record().

#define SPI_AICTRL1   0xd /**< VS10xx register */


VS10xx register.

Definition at line 32 of file vs10xx.h.

Referenced by AvailableProcessorTime(), and Record().

#define SPI_AICTRL2   0xe /**< VS10xx register */


VS10xx register.

Definition at line 33 of file vs10xx.h.

Referenced by PlayDiskSectors().

#define SPI_AICTRL3   0xf /**< VS10xx register */


VS10xx register.

Definition at line 34 of file vs10xx.h.

#define SPI_AUDATA   0x5 /**< VS10xx register */


VS10xx register.

Definition at line 24 of file vs10xx.h.

Referenced by Mp3Reset().

#define SPI_BASS   0x2 /**< VS10xx register */


VS10xx register.

Definition at line 21 of file vs10xx.h.

Referenced by AvailableProcessorTime().

#define SPI_CLOCKF   0x3 /**< VS10xx register */


VS10xx register.

Definition at line 22 of file vs10xx.h.

Referenced by Mp3Reset(), Mp3SoftReset(), and Record().

#define SPI_DECODE_TIME   0x4 /**< VS10xx register */


VS10xx register.

Definition at line 23 of file vs10xx.h.

Referenced by Record(), and ScreenSetPlayTime().

#define SPI_HDAT0   0x8 /**< VS10xx register */


VS10xx register.

Definition at line 27 of file vs10xx.h.

Referenced by Record().

#define SPI_HDAT1   0x9 /**< VS10xx register */


VS10xx register.

Definition at line 28 of file vs10xx.h.

Referenced by PlayDiskSectors(), and Record().

#define SPI_MODE   0x0 /**< VS10xx register */


VS10xx register.

Definition at line 19 of file vs10xx.h.

Referenced by Mp3SoftReset(), PlayCurrentFile(), and Record().

#define SPI_STATUS   0x1 /**< VS10xx register */


VS10xx register.

Definition at line 20 of file vs10xx.h.

#define SPI_VOL   0xb /**< VS10xx register */


VS10xx register.

Definition at line 30 of file vs10xx.h.

#define SPI_WRAM   0x6 /**< VS10xx register */


VS10xx register.

Definition at line 25 of file vs10xx.h.

#define SPI_WRAMADDR   0x7 /**< VS10xx register */


VS10xx register.

Definition at line 26 of file vs10xx.h.

#define VS_READ_COMMAND   0x03


VS10xx SCI Read Command byte is 0x03.

Definition at line 16 of file vs10xx.h.

Referenced by Mp3ReadRegister().

#define VS_WRITE_COMMAND   0x02


VS10xx SCI Write Command byte is 0x02.

Definition at line 13 of file vs10xx.h.

Function Documentation

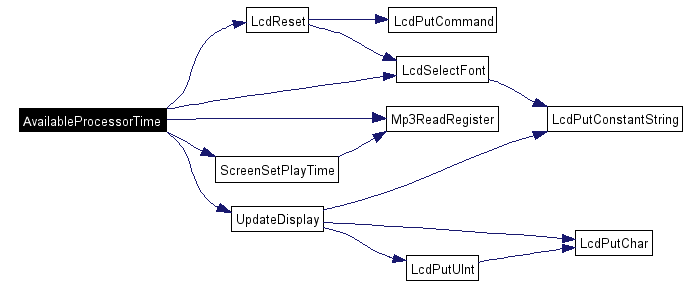

void AvailableProcessorTime (   )


This is called when there is free processor time, implement externally.

The basic task of this function is to implement the player user interface.

Local variables:

  • volume: Current volume setting

  • bass: Current bass enhancer setting

  • treble: Current treble enhancer setting

  • reclevel: Current recording level setting

  • uiReturnDelay: Counts down to returning to UI mode 0 (title screen)

Bass/Treble setting calculation

There are 2 or 4 adjustments possible:

  • Bass Frequency (1011B/E, 1002, 10x3) : 2..15 -> 20..1500 Hz
  • Bass boost (1011B/E, 1002, 10x3) : 0..15 -> 0ff..+15dB)
  • Treble Frequency (1011E, 10x3) : 0..15 -> 0..15kHz
  • Treble level (1011E, 10x3) : -8..+7 -> -12..+10.5dB

In this software, all are adjusted based from a single setting (0..128) for bass and another for treble. You may wish to allow user to control frequency and level separately or set fixed frequencies for a known speaker type. This algorithm increases the frequency range of adjustment with the increasing level.

Definition at line 327 of file player.c.

References displayStyle, displayTitle, displayValue, DS_NO_YES, DS_PERCENTAGE, DS_RAWTEXT, DS_TEXT, KEY_BUTTON, KEY_FARLEFT, KEY_FARRIGHT, lcdFont_barchars, lcdFont_vertical_barchars, LcdReset(), LcdSelectFont(), Mp3ReadRegister(), Mp3SetVolume, Mp3WriteRegister, playingState, PS_CUE, PS_END_OF_SONG, PS_NEXT_SONG, PS_NORMAL, PS_PREVIOUS_SONG, PS_RECORDING, PS_REWIND, ScreenSetPlayTime(), SPI_AICTRL1, SPI_BASS, SPIPutChar, SPIWait, UI_BASS, UI_CUE, UI_END_OF_MODES, UI_INFO, UI_RECLEVEL, UI_RETURN_DELAY, UI_SPEC, UI_STOP, UI_TITLE, UI_TREBLE, UI_VOLUME, uiMode, UpdateDisplay(), and userInterfaceDelayElapsed.

Referenced by GetAVIBlock(), PlayDiskSectors(), and Record().

00327                              {
00328
00332   static xdata unsigned char volume = 20;
00333
00335   static xdata unsigned char bass = 0;
00336
00338   static xdata unsigned char treble = 64; //middle setting = 0
00339
00341   static xdata unsigned char reclevel = 50;
00342
00343   unsigned int i; //temp variable
00344
00345   static bit bassUpdateNeeded;
00346
00350   static unsigned char uiReturnDelay=0;
00351
00352   if (!userInterfaceDelayElapsed){
00353     return; /* Not yet time to do user interface stuff */
00354   }
00355
00356   userInterfaceDelayElapsed = 0;
00357
00358
00359   // User Interface Modes
00360   // Return to UI_TITLE after long period of button inactivity
00361
00362   if (uiReturnDelay == 0){
00363     if ((uiMode != UI_SPEC)&&(uiMode != UI_CUE))
00364       uiMode = UI_TITLE;
00365     else{
00366     }
00367   }else{
00368     uiReturnDelay--;
00369   }
00370
00371 #ifndef VS1003
00372   if (uiMode==UI_SPEC) //Only VS1003 has spectrum analyzer
00373     uiMode++;
00374   if (uiMode==UI_RECLEVEL) //Only record in VS1003 chips
00375     uiMode++;
00376 #endif
00377
00378   if (uiMode==UI_INFO)
00379     uiMode++; //Nothing interesting currently in screen UI_INFO.
00380   if (uiMode==UI_STOP)
00381     uiMode++; //Nothing interesting currently in screen UI_STOP.
00382
00383   /* Screen updates */
00384   switch(uiMode){
00385
00386   case UI_TITLE:  //Playing time, song title
00387
00388     displayStyle = DS_TEXT;
00389     ScreenSetPlayTime();
00390
00391     if (playingState==PS_RECORDING){
00392       displayStyle = DS_PERCENTAGE;
00393     }
00394
00395     break;
00396
00397   case UI_STOP: //Ask if the user wants to stop
00398     displayStyle = DS_NO_YES;
00399     strcpy (displayTitle, "Stop?   ");
00400     break;
00401
00402   case UI_CUE: //Ask if the user wants to fast forward or rewind
00403     displayStyle = DS_RAWTEXT;
00404     strcpy (displayTitle, "REW/CUE  <-   ->");
00405
00406     //i = Mp3ReadRegister(SPI_HDAT1);
00407     //displayTitle[5] = lcd_hexchars[i>>12];
00408     //displayTitle[6] = lcd_hexchars[(i>>8)&0x0f];
00409     //displayTitle[7] = lcd_hexchars[(i>>4)&0x0f];
00410     //displayTitle[8] = lcd_hexchars[i&0x0f];
00411
00412     break;
00413
00414   case UI_VOLUME: //Show volume bar
00415     LcdSelectFont(lcdFont_barchars);
00416     displayStyle = DS_PERCENTAGE;
00417     strcpy(displayTitle,"Volume: ");
00418     displayValue = (100-(volume>>1));
00419     if (displayValue<0) displayValue = 0;
00420     break;
00421
00422   case UI_BASS: //Show bass bar
00423     LcdSelectFont(lcdFont_barchars);
00424     displayStyle = DS_PERCENTAGE;
00425     strcpy(displayTitle,"Bass:   ");
00426     displayValue = (bass/5)*4;
00427     if (displayValue<1) displayValue = 1;
00428     break;
00429
00430   case UI_TREBLE: //Show treble bar
00431     LcdSelectFont(lcdFont_barchars);
00432     displayStyle = DS_PERCENTAGE;
00433     strcpy(displayTitle,"Treble: ");
00434     displayValue = (treble/5)*4;
00435     if (displayValue<1) displayValue = 1;
00436     break;
00437
00438   case UI_RECLEVEL: //Show recording level
00439
00440     if (playingState==PS_RECORDING){
00441       LcdSelectFont(lcdFont_barchars);
00442       displayStyle = DS_PERCENTAGE;
00443       strcpy(displayTitle,"RecLevel");
00444       displayValue = (reclevel);
00445       if (reclevel==0){
00446         strcpy(displayTitle,"RecLevel <Auto> ");
00447         displayStyle = DS_RAWTEXT; //Reveal the "auto" text
00448       }
00449     }else{
00450       //Not in recording
00451       displayStyle = DS_NO_YES;
00452       strcpy (displayTitle, "Record? ");
00453     }
00454     break;
00455
00456
00457   case UI_SPEC: // Spectrum analyzer
00458
00459     if (playingState == PS_RECORDING){
00460       uiMode++; //Don't show specana when recording
00461     }
00462
00463     LcdSelectFont(lcdFont_vertical_barchars);
00464     displayStyle = DS_RAWTEXT;
00465     ScreenSetPlayTime();
00466
00467     // Request to read Spectrum Analyzer register
00468     Mp3WriteRegister(7, 0x18, 0x04);
00469
00470     // Read Spectrum Analyzer registers
00471     {
00472       for (i=0;i<8;i++) { //for each band i in [0..7]
00473         signed char thisband = Mp3ReadRegister(6);
00474
00475         /* thisband now has spectrum value 0..63. We adjust it a little
00476            for best image on the evakit LCD. You also get peak values
00477            etc from the chip but we don't use them in the evakit screen.
00478            we use 8 bands, but up to 23 are obtainable from the chip. */
00479
00480         thisband &= 63;                /* mask all but level info */
00481         thisband >>= 1;                /* LCD resolution is not high */
00482         thisband -= 3;                 /* base offset */
00483         if (i==0) thisband -= 2;       /* decrease bass bar level */
00484         if (i==6) thisband += 1;       /* increase treble bar level */
00485         if (i==7) thisband += 1;       /* increase treble bar level */
00486         if (thisband>7) thisband = 7;  /* high limit */
00487         if (thisband<0) thisband =' '; /* low limit */
00488
00489         displayTitle[i+8] = thisband; //Store to display mem
00490
00491       }//for each band
00492     }
00493     break;
00494
00495   } //switch(uiMode)
00496
00497   // Buttons handler
00498   // Perform mode-dependent button handling
00499
00500   if ((KEY_BUTTON) && (uiReturnDelay < UI_RETURN_DELAY-20)){
00501     LcdReset();
00502     uiMode++;
00503     uiReturnDelay = UI_RETURN_DELAY;
00504   }
00505
00506   switch(uiMode){
00507
00508   case UI_TITLE:
00509   case UI_SPEC:
00510
00511     if (KEY_FARRIGHT){
00512       playingState = PS_NEXT_SONG; /* Request */
00513     }
00514     if (KEY_FARLEFT){
00515       playingState = PS_PREVIOUS_SONG; /* Request */
00516     }
00517     break;
00518
00519
00520   case UI_VOLUME:
00521
00522     if (KEY_FARLEFT){
00523       uiReturnDelay = UI_RETURN_DELAY;
00524       if (volume++ == 254) volume = 254; //Change + limit to 254 (minimum vol)
00525       Mp3SetVolume(volume,volume);
00526     }
00527
00528     if (KEY_FARRIGHT){
00529       uiReturnDelay = UI_RETURN_DELAY;
00530       if (volume-- == 0) volume = 0; //Change + limit to 0 (maximum volume)
00531       Mp3SetVolume(volume,volume);
00532     }
00533     break; // UI_VOLUME
00534
00535   case UI_BASS:
00536   case UI_TREBLE: //BASS and TREBLE use the same VS10xx register
00537     bassUpdateNeeded = 0;
00538
00539     //First let's see if a key is pressed; does the user want to set level?
00540
00541     if (uiMode==UI_BASS){ //BASS screen is active
00542
00543       if (KEY_FARLEFT){
00544         bassUpdateNeeded = 1;
00545         if (bass-- == 0) bass = 0; //Change + limit to 0 (OFF setting)
00546       }
00547       if (KEY_FARRIGHT){
00548         bassUpdateNeeded = 1;
00549         if (bass++ == 127) bass = 127; //Change + limit to 127 (max setting)
00550       }
00551
00552     }else{ //TREBLE screen is active
00553
00554       if (KEY_FARLEFT){
00555         bassUpdateNeeded = 1; //SCI_BASS is for both bass and treble
00556         if (treble-- == 0) treble = 0; //Change + limit to 0 (OFF setting)
00557       }
00558       if (KEY_FARRIGHT){
00559         bassUpdateNeeded = 1; //SCI_BASS is for both bass and treble
00560         if (treble++ == 127) treble = 127; //Change + limit to 127 (max)
00561       }
00562
00563     }
00564
00565
00566     if (bassUpdateNeeded){
00567       unsigned int newBassRegister;
00568
00569       //User has pushed button to alter bass/treble register
00570       //calculate new value
00571
00587       //Let's start from bass frequency setting.
00588       //min(0) should give 2 (20Hz), max(127) should give 15 (150Hz)
00589       newBassRegister = (bass + 23) / 10; //into bits 3..0, clear hibits
00590
00591       //Bass boost level.
00592       //min(0) should give 0, max(127) should give 15
00593       newBassRegister |= (bass>>3)<<4; //insert to bits 7..4
00594
00595       //Then the treble frequency
00596       //min(0) should give 15(15kHx), max(127) should give 2(2kHz)
00597       newBassRegister |= (((148-treble)>>3)+2)<<8; //insert into bits 11..8
00598
00599       //Finally the treble value (-8..7)
00600       //min(0) should give -8, max(127) should give 7;
00601       newBassRegister |= ((treble>>3)-8)<<12; //insert into bits 15..12
00602
00603
00604       uiReturnDelay = UI_RETURN_DELAY;
00605
00606       if (Mp3ReadRegister(SPI_BASS)!=newBassRegister){
00607         Mp3WriteRegister(SPI_BASS,newBassRegister>>8,newBassRegister&0xff);
00608       }
00609
00610       //i = newBassRegister;
00611       //displayTitle[4] = lcd_hexchars[i>>12];
00612       //displayTitle[5] = lcd_hexchars[(i>>8)&0x0f];
00613       //displayTitle[6] = lcd_hexchars[(i>>4)&0x0f];
00614       //displayTitle[7] = lcd_hexchars[i&0x0f];
00615
00616
00617     }
00618
00619     break; // UI_BASS and UI_TREBLE
00620
00621
00622   case UI_RECLEVEL:
00623
00624     if (playingState==PS_RECORDING){
00625       if (KEY_FARRIGHT){
00626         uiReturnDelay = UI_RETURN_DELAY;
00627         if (reclevel++ == 100){
00628           reclevel = 100;
00629         }
00630         Mp3WriteRegister(SPI_AICTRL1,
00631                          ((int)reclevel*32)>>8,((int)reclevel*32)&0xff);
00632         SPIPutChar(0);SPIWait();
00633       }
00634
00635       if (KEY_FARLEFT){
00636         uiReturnDelay = UI_RETURN_DELAY;
00637         if (reclevel-- == 0){
00638           reclevel = 0;
00639         }
00640         Mp3WriteRegister(SPI_AICTRL1,
00641                          ((int)reclevel*32)>>8,((int)reclevel*32)&0xff);
00642         SPIPutChar(0);SPIWait();
00643       }
00644     }else{
00645       //Not in recording
00646       if (KEY_FARRIGHT){
00647         //Enter recording mode
00648         playingState=PS_RECORDING; //request to record
00649       }
00650     }
00651     break; // UI_RECLEVEL
00652
00653   case UI_STOP:
00654
00655     if (KEY_FARRIGHT){
00656       playingState = PS_END_OF_SONG; /* Request to abort playing */
00657     }
00658     break; // UI_STOP
00659
00660   case UI_CUE:
00661
00662     if (playingState == PS_NORMAL){ /* Only control when PS_NORMAL */
00663       if (KEY_FARRIGHT){
00664         uiReturnDelay = UI_RETURN_DELAY; /* Don't go back to title just yet */
00665         playingState = PS_CUE; /* Request */
00666       }
00667       if (KEY_FARLEFT){
00668         uiReturnDelay = UI_RETURN_DELAY;
00669         playingState = PS_REWIND; /* Request */
00670       }
00671     }
00672
00673     break; // UI_SKIP
00674
00675   case UI_END_OF_MODES:
00676     uiMode = UI_TITLE;
00677     break; // UI_END_OF_MODES
00678
00679
00680   } //End Switch
00681
00682
00683   // Draw screen
00684   UpdateDisplay();
00685 }

Here is the call graph for this function:

unsigned int Mp3ReadRegister (  unsigned char  addressbyte  )


Read the 16-bit value of a VS10xx register.

Definition at line 17 of file vs10xx.c.

References Mp3DeselectControl, Mp3SelectControl, SPI_RESULT_BYTE, SPIPutChar, SPIPutCharWithoutWaiting, SPIWait, and VS_READ_COMMAND.

Referenced by AvailableProcessorTime(), PlayDiskSectors(), Record(), and ScreenSetPlayTime().

00017                                                         {
00018   unsigned int resultvalue = 0;
00019
00020   Mp3SelectControl();
00021   SPIPutCharWithoutWaiting(VS_READ_COMMAND);
00022   SPIPutChar((addressbyte));
00023   SPIPutChar(0xff);
00024   SPIWait();
00025   resultvalue = (SPI_RESULT_BYTE) << 8;
00026   SPIPutCharWithoutWaiting(0xff);
00027   SPIWait();
00028   resultvalue |= (SPI_RESULT_BYTE);
00029   Mp3DeselectControl();
00030   return resultvalue;
00031 }

void Mp3Reset (   )


Reset VS10xx.

Definition at line 69 of file vs10xx.c.

References Delay(), MP3_DREQ, Mp3DeselectControl, Mp3DeselectData, Mp3PutInReset, Mp3ReleaseFromReset, Mp3SetVolume, Mp3SoftReset(), Mp3WriteRegister, SPI_AUDATA, SPI_CLOCKF, SPIPutCharWithoutWaiting, and SPISetFastClock.

Referenced by main(), and Record().

00069                {
00070
00071   Mp3PutInReset();
00072   Delay(1);
00073
00074   /* Send dummy SPI byte to initialize SPI */
00075   SPIPutCharWithoutWaiting(0xFF);
00076
00077   /* Un-reset MP3 chip */
00078   Mp3DeselectControl();
00079   Mp3DeselectData();
00080   Mp3ReleaseFromReset();
00081   Mp3SetVolume(0xff,0xff);
00082
00083   /* Set clock register, doubler etc. */
00084 #ifdef VS1003
00085   Mp3WriteRegister(SPI_CLOCKF, 0xa6, 0x6c);
00086 #else
00087   Mp3WriteRegister(SPI_CLOCKF, 156, 204);
00088 #endif
00089
00090   /* Wait for DREQ */
00091   while (!MP3_DREQ)
00092     ;
00093
00094   /* Slow sample rate for slow analog part startup */
00095   Mp3WriteRegister(SPI_AUDATA, 0, 10); /* 10 Hz */
00096   Delay(100);
00097
00098   /* Switch on the analog parts */
00099   Mp3SetVolume(0xfe,0xfe);
00100   Mp3WriteRegister (SPI_AUDATA, 31, 64); /* 8kHz */
00101   Mp3SetVolume(20,20);
00102   Mp3SoftReset();
00103   SPISetFastClock();
00104
00105
00106   ConsoleWrite ("Init: VS10XX\r");
00107
00108 }

Here is the call graph for this function:

void Mp3SoftReset (   )


Soft Reset of VS10xx (Between songs).

Definition at line 35 of file vs10xx.c.

References Delay(), MP3_DREQ, Mp3DeselectData, Mp3SelectData, Mp3WriteRegister, SPI_CLOCKF, SPI_MODE, SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait.

Referenced by main(), and Mp3Reset().

00035                    {
00036
00037   /* Soft Reset of VS10xx */
00038   Mp3WriteRegister (SPI_MODE, 0x08, 0x04); /* Newmode, Reset, No L1-2 */
00039
00040   Delay(1); /* One millisecond delay */
00041   while (!MP3_DREQ) /* wait for startup */
00042     ;
00043
00044   /* Set clock register, doubler etc. */
00045 #ifdef VS1003
00046   Mp3WriteRegister(SPI_CLOCKF, 0xa6, 0x96);
00047 #else
00048   Mp3WriteRegister(SPI_CLOCKF, 156, 204);
00049 #endif
00050
00051   Delay(1); /* One millisecond delay */
00052
00053
00054   /* Send null bytes to data interface */
00055   Mp3SelectData();
00056   SPIPutCharWithoutWaiting(0);
00057   SPIPutChar(0);
00058   SPIPutChar(0);
00059   SPIPutChar(0);
00060   SPIWait();
00061   Mp3DeselectData();
00062
00063 }

Here is the call graph for this function:

unsigned char PlayDiskSectors (  unsigned int  nSectorsToPlay  )


Play disk sectors from disk.

Starting from current value in global variable sectorAddress, sends a number of disk sectors to vs10xx and returns.

How many sectors to send between ff/rew commands

Definition at line 202 of file vs10xx.c.

References AvailableProcessorTime(), DiskBlock::Raw::buf, dataBufPtr, diskSect, GREEN_LED, Address::l, LED_OFF, LED_ON, MP3_DREQ, Mp3DeselectData, Mp3ReadRegister(), Mp3SelectData, Mp3WriteRegister, PlayAvi(), playingState, PrepareToReadDiskSector(), PS_CUE, PS_CUE_ACTION, PS_CUE_WAIT1003, PS_END_OF_SONG, PS_FALLBACK_1, PS_FALLBACK_N, PS_NEXT_SONG, PS_NORMAL, PS_PREVIOUS_SONG, PS_RECORDING, PS_REW_WAIT1003, PS_REWIND, DiskBlock::raw, ReadDiskSector(), sectorAddress, SendZerosToVS10xx(), SPI_AICTRL2, SPI_HDAT1, SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait.

Referenced by PlayCurrentFile().

00202                                                            {
00203
00205   unsigned char fallbackCount = 0;
00206
00207
00208 #ifdef AVIPLAY
00209   if (!PlayAvi()) return 0; //try to play AVI file soundtrack starting from
00210                             //current sector, if avifile is played, return.
00211 #endif
00212
00213
00214   PrepareToReadDiskSector(sectorAddress.l);
00215   while (nSectorsToPlay--){
00216
00217     AvailableProcessorTime();
00218
00219     ReadDiskSector(sectorAddress.l);
00220
00221     /* If playing state is something else than "play normally",
00222        exit returning the request number. */
00223     if ((playingState==PS_END_OF_SONG)||
00224         (playingState==PS_NEXT_SONG)||
00225         (playingState==PS_RECORDING)||
00226         (playingState==PS_PREVIOUS_SONG)){
00227       return playingState;
00228     }
00229
00230
00231     /* === REWIND / FAST FORWARD FUNCTIONALITY CODE BEGINS === */
00232     /* If you don't implement rewind / fast forward, leave these lines out */
00233
00234     if (playingState==PS_FALLBACK_N){
00235       if ((--fallbackCount)==0){
00236         playingState=PS_NORMAL;
00237       }
00238     }
00239
00240     if (playingState==PS_FALLBACK_1){
00241       /* Now we should have brand new sector in memory ready for sending to
00242          VS1003, so let's send zeroes between old and new data. */
00243       ConsoleWrite("(Zeros)");
00244       SendZerosToVS10xx();
00245       ConsoleWrite("->Fallback to normal");
00246       fallbackCount = 24;
00247       playingState = PS_FALLBACK_N;
00248     }
00249
00250
00251     if (playingState==PS_CUE){ //Request to start fast forward
00252       if (Mp3ReadRegister(SPI_HDAT1)==((int)'W'<< 8)+'m'){
00253         ConsoleWrite("\rWmCUE->Wait");
00254         Mp3WriteRegister(SPI_AICTRL2, 0x12, 0x34);
00255         playingState = PS_CUE_WAIT1003;
00256       }else{
00257         playingState = PS_CUE_ACTION;
00258       }
00259     }
00260
00261     if (playingState==PS_CUE_WAIT1003){ //Wait for permission to break data flow
00262       if (Mp3ReadRegister(SPI_AICTRL2)==0x2345){ //permission granted
00263         ConsoleWrite("->Action");
00264         playingState = PS_CUE_ACTION;
00265       }
00266     }
00267
00268     if (playingState==PS_CUE_ACTION){
00269       if (nSectorsToPlay>128){
00270         sectorAddress.l += 128; //Skip sectors
00271         nSectorsToPlay -= 128;
00272         //adjust vs1003 song left
00273         ConsoleWrite("->Fallback(5)");
00274         playingState = PS_FALLBACK_1; //Sector already in memory still goes.
00275       }
00276     }
00277
00278     if (playingState==PS_REWIND){ //Request to start fast forward
00279       Mp3WriteRegister(SPI_AICTRL2, 0x12, 0x34);
00280       playingState = PS_REW_WAIT1003;
00281     }
00282
00283     if (playingState==PS_REW_WAIT1003){ //Wait for permission to break data flow
00284       if (1){
00285         if (1 || (Mp3ReadRegister(SPI_AICTRL2)==0x2345)){ //permission granted
00286           sectorAddress.l -= 128;
00287           nSectorsToPlay += 128;
00288           playingState = PS_FALLBACK_1; //Sector already in memory still goes.
00289         }
00290       }
00291     }
00292
00293
00294     /* === END OF REWIND / FAST FORWARD FUNCTIONALITY CODE === */
00295
00296
00297
00298     sectorAddress.l++;
00299     if (nSectorsToPlay){
00300       /*Do not seek after the last sector*/
00301       PrepareToReadDiskSector(sectorAddress.l);
00302     }
00303
00304     Mp3SelectData();
00305
00306     dataBufPtr = diskSect.raw.buf;
00307     while (dataBufPtr < diskSect.raw.buf+512){
00308
00309       if (!MP3_DREQ){
00310         GREEN_LED = LED_ON;
00311         while (!MP3_DREQ){
00312           Mp3DeselectData();
00313           AvailableProcessorTime();
00314           Mp3SelectData();
00315         }
00316       }
00317       GREEN_LED = LED_OFF;
00318
00319       /* Send 32 octets of disk block data to VS10xx */
00320       SPIPutCharWithoutWaiting(*dataBufPtr++);
00321       SPIWait();
00322       SPIPutChar(*dataBufPtr++);
00323       SPIPutChar(*dataBufPtr++);
00324       SPIPutChar(*dataBufPtr++);
00325       SPIPutChar(*dataBufPtr++);
00326       SPIPutChar(*dataBufPtr++);
00327       SPIPutChar(*dataBufPtr++);
00328       SPIPutChar(*dataBufPtr++);
00329       SPIPutChar(*dataBufPtr++);
00330       SPIPutChar(*dataBufPtr++);
00331       SPIPutChar(*dataBufPtr++);
00332       SPIPutChar(*dataBufPtr++);
00333       SPIPutChar(*dataBufPtr++);
00334       SPIPutChar(*dataBufPtr++);
00335       SPIPutChar(*dataBufPtr++);
00336       SPIPutChar(*dataBufPtr++);
00337       SPIPutChar(*dataBufPtr++);
00338       SPIPutChar(*dataBufPtr++);
00339       SPIPutChar(*dataBufPtr++);
00340       SPIPutChar(*dataBufPtr++);
00341       SPIPutChar(*dataBufPtr++);
00342       SPIPutChar(*dataBufPtr++);
00343       SPIPutChar(*dataBufPtr++);
00344       SPIPutChar(*dataBufPtr++);
00345       SPIPutChar(*dataBufPtr++);
00346       SPIPutChar(*dataBufPtr++);
00347       SPIPutChar(*dataBufPtr++);
00348       SPIPutChar(*dataBufPtr++);
00349       SPIPutChar(*dataBufPtr++);
00350       SPIPutChar(*dataBufPtr++);
00351       SPIPutChar(*dataBufPtr++);
00352       SPIPutChar(*dataBufPtr++);
00353       SPIWait();
00354     }
00355
00356
00357     SPIWait();
00358     Mp3DeselectData();
00359   }
00360
00361
00362   return 0; //OK Exit
00363 }

Here is the call graph for this function:

void SendZerosToVS10xx (   )


Send 2048 zeros.

Todo:
Timeouts for all DREQ busy loop waits!

Definition at line 178 of file vs10xx.c.

References Temp::i, MP3_DREQ, Mp3DeselectData, Mp3SelectData, SPIPutChar, SPIPutCharWithoutWaiting, SPIWait, and temp.

Referenced by PlayCurrentFile(), and PlayDiskSectors().

00178                         {
00179   Mp3SelectData();
00180   SPIPutCharWithoutWaiting(0);
00181   for (temp.i=0; temp.i<1048; temp.i++){ /* TESTING 1048 TESTING */
00182     while (!MP3_DREQ)
00183       ;
00184     SPIPutChar(0);
00185   }
00186   SPIWait();
00187   Mp3DeselectData();
00188 }

void VsSineTest (   )


Execute VS1011/VS1002 Sine Test Function.

Definition at line 112 of file vs10xx.c.

References Delay(), GREEN_LED, LED_OFF, LED_ON, MP3_DREQ, Mp3DeselectControl, Mp3DeselectData, Mp3PutInReset, Mp3ReleaseFromReset, Mp3SelectControl, Mp3SelectData, RED_LED, SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait.

00112                  {
00113
00114   /* Reset MP3 chip */
00115   Mp3PutInReset();       /* Pull xRESET low -> hardware reset */
00116   Delay(100);            /* 100 ms delay */
00117
00118   /* Send dummy SPI byte to initialize SPI of Atmel microcontroller */
00119   SPIPutCharWithoutWaiting(0xFF);
00120
00121   /* Un-reset MP3 chip */
00122   Mp3DeselectControl();  /* Pull xCS high    */
00123   Mp3DeselectData();     /* Pull xDCS high   */
00124   Mp3ReleaseFromReset(); /* Pull xRESET high */
00125   Delay(100);            /* 100 ms delay     */
00126
00127   GREEN_LED = LED_ON;
00128   RED_LED = LED_ON;
00129
00130   /* VS10xx Application Notes, chapter 4.8 ---------------------------------*/
00131   /* As an example, let's write value 0x0820 to register 00 byte by byte    */
00132   Mp3SelectControl();    /* Now SPI writes go to SCI port                   */
00133   SPIPutChar(0x02);      /* Send SPI Byte, then wait for byte to be sent.   */
00134   SPIPutChar(0x00);      /* 0x02 was WRITE command, 0x00 is register number */
00135   SPIPutChar(0x08);      /* This byte goes to MSB                           */
00136   SPIPutChar(0x20);      /* ..and this is LSB. (0x20=Allow Test Mode)       */
00137   SPIWait();             /* Wait until Atmel MCU signals SPI write complete */
00138   Mp3DeselectControl();  /* Now SPI writes don't go to SCI port             */
00139
00140   while (!MP3_DREQ)      /* Wait for DREQ = 1                               */
00141     ;                    /* Do nothing while waiting for DREQ = 1           */
00142
00143   /* Send a Sine Test Header to Data port                                   */
00144   Mp3SelectData();       /* Now SPI writes go to SDI port                   */
00145
00146   SPIPutChar(0x53);      /* - This is a special VLSI Solution test header - */
00147   SPIPutChar(0xef);      /* - that starts a sine sound. It's good for     - */
00148   SPIPutChar(0x6e);      /* - testing your code, the chip and also for    - */
00149   SPIPutChar(0x44);      /* - seeing if your MP3 decoder was manufactured - */
00150   SPIPutChar(0x00);      /* - by VLSI Solution oy. ------------------------ */
00151   SPIPutChar(0x00);
00152   SPIPutChar(0x00);
00153   SPIPutChar(0x00);
00154   SPIWait();
00155   Mp3DeselectData();
00156
00157   RED_LED = LED_OFF;
00158   Delay (500);           /* 500 ms delay */
00159   GREEN_LED = LED_OFF;
00160
00161   /* Stop the sine test sound */
00162   Mp3SelectData();
00163   SPIPutChar(0x45);
00164   SPIPutChar(0x78);
00165   SPIPutChar(0x69);
00166   SPIPutChar(0x74);
00167   SPIPutChar(0x00);
00168   SPIPutChar(0x00);
00169   SPIPutChar(0x00);
00170   SPIPutChar(0x00);
00171   SPIWait();
00172   Mp3DeselectData();
00173
00174   Delay(500);            /* 500 ms delay */
00175 }

Here is the call graph for this function:

Variable Documentation

xdata unsigned char playingState


Playing State Global, 0=normal playing, 1=abort playing.

Definition at line 53 of file vs10xx.h.

Referenced by AvailableProcessorTime(), main(), PlayCurrentFile(), PlayDiskSectors(), Record(), and ScreenSetPlayTime().

All software copyright 2000-2004 VLSI Solution OY. Redistribution of these software modules are limited to promotional use only and only with the VS1011 / VS1002 / VS1003 MP3-Evakit evaluation boards. Free or commercial use of these software modules in MP3 players is ok if the product includes MP3 decoder chip(s) from VLSI. You can request the complete (compilable) package from mp3@vlsi.fi
