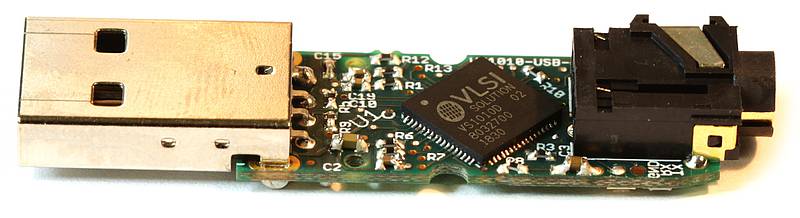

Miniature VS1010 USB Headphone DAC board

VS1010 USB microSD Card Reader

Features

  • VS1010D device in QFN-68 package
  • Miniature High Quality 24bit USB DAC
  • Operates as a Standard USB audio device
  • Four LEDs for displaying operating state and USB audio quality level
  • Supports up to 24bit/96kHz operation
  • Supported by most operating systems, does not require drivers

Description

The VS1010 USB headphone adapter is a demonstration board which shows how the VS1010D can be used as a miniature size USB DAC and headphone driver. In this operating mode, the VS1010D functions as a USB standard audio device. No custom drivers are needed in the host PC or device, although custom firmware can enhance the data transfer speed and the end user experience.

The ROM firmware uses VLSI vendor and product IDs. Custom firmware is needed to allow custom USB vendor and product IDs and names as well as serial numbers.

Schematics, gerber documents and Eagle design files are available.
