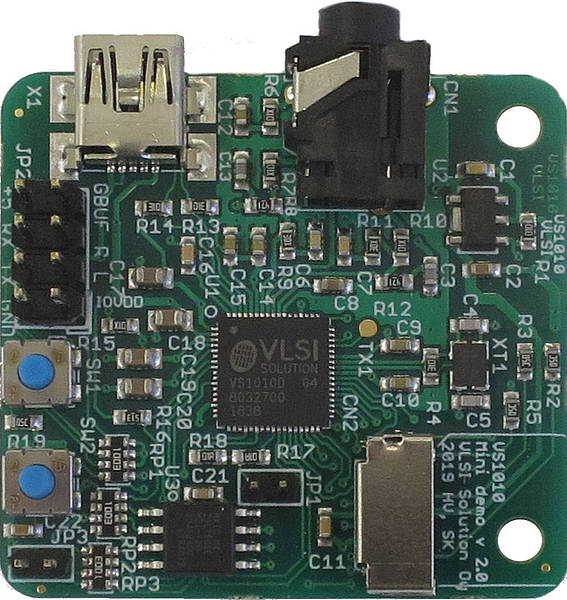

VS1010 Minidemo Board

VS1005 Developer Board

Features

  • VS1010C device in QFP68 package
  • MicroSD slot
  • USB Mini-AB connector for PC USB connection
  • 128 megabyte SPI NAND flash for custom firmware
  • Headphone Out
  • UART connector
  • 1 button
  • Open source VSOS kernel and device drivers
  • Supported by VSIDE development tools

Description

The VS1010C Minidemo board is an example of a simple board with a small component

count, but it can still do a lot of things. It can be configured, for example, to be...
• SD card MP3 player
• Pre-programmed player (Audio Book) with SPI flash or SPI NAND flash storage
• USB DAC
• USB Serial Port
• MCU UART controlled player
• MCU to SD card adapter*
• MCU to USB or USB flash adapter*
