VS1010 - Versatile DSP Microcontroller

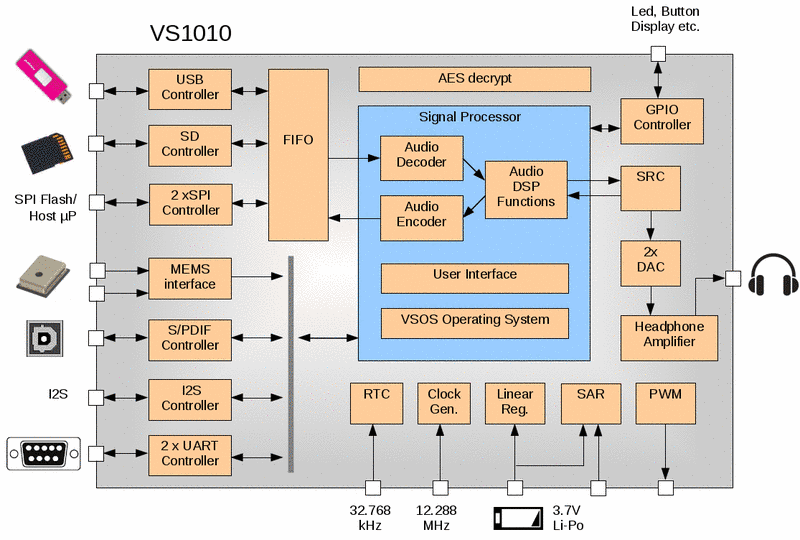

Block diagram

Introduction

VS1010 is a versatile DSP microcontroller, which is at the same time very cost-efficient (less than 2 USD in high volumes).

Features

  • Fast SD Card Controller with easy file reading and writing
  • USB Host / Peripheral Controller
  • Up to 42 GPIO pins
  • Up to 7 12-bit analog inputs
  • 2 x SPI, 2 x UART, PWM, WDT, POR, 3 x Timer
  • 160 KiB ROM includes OS, FAT filesystem, USB and SD card support, etc
  • 69 KiB data RAM, 16 KiB internal program RAM
  • Flexible firmware customization using VSOS and VSIDE tools
  • Software libraries can be stored and run from SD card or SPI flash
  • High Quality 24-bit / 96 kHz Stereo DAC
  • I2S Input/Output for external DAC/ADC
  • Digital microphone input
  • Integrated MP3/OGG/WAV playback
  • Integrated USB SD card reader functionality
  • Integrated real-time clock
  • Single 3.6 – 5.5 volt power supply, internal voltage regulators

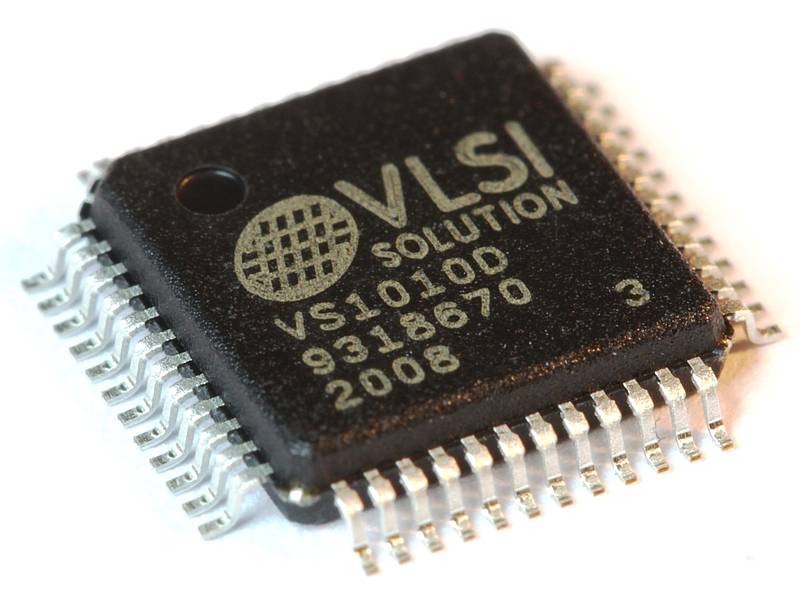

  • LQFP-48 and QFN-68 packages

Availability

  • Q1/2017: Evaluation boards for selected projects
  • Q2/2017: Samples, evaluation boards for sale
  • Q3/2017: Pre-production quantities
  • Q4/2017: Production quantities

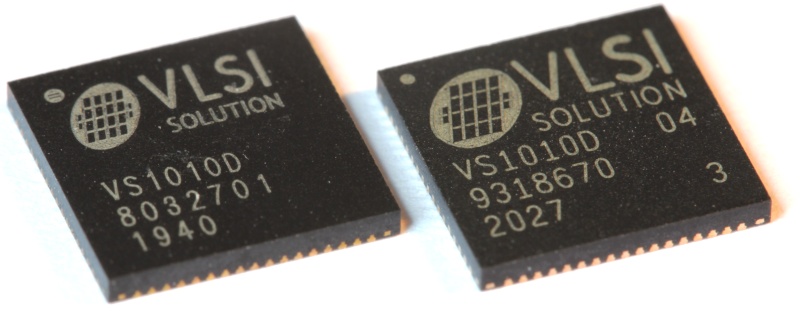

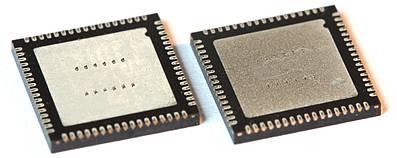

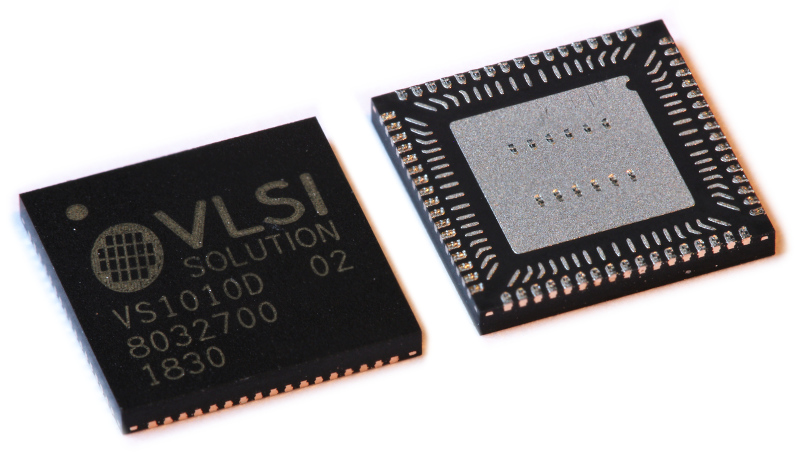

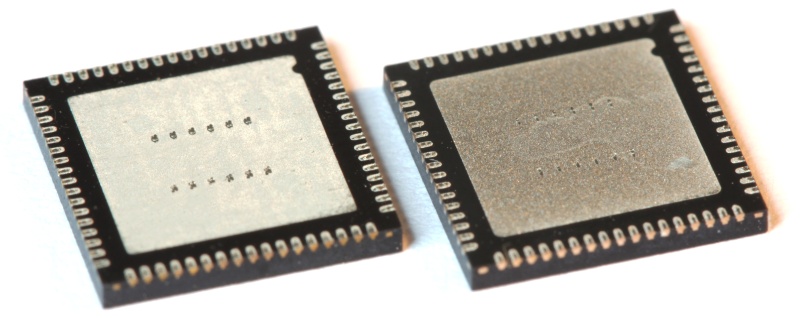

Package

LFGA68 8x8x0.9mm
